Sleeved post cable kit

Cable Runs on a Pitch

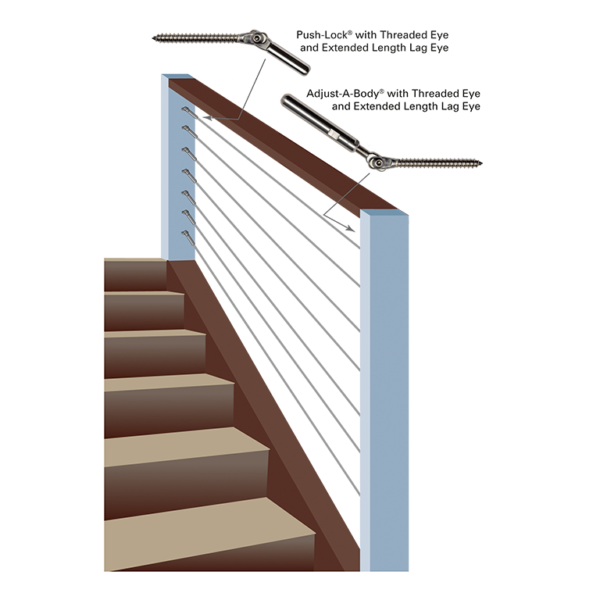

Top posts are often corner posts, which may require the stair run to connect to the face of the post. The top and bottom of the cable run would be connected perpendicular to those posts, and only the intermediate posts would be drilled on the angle for the cable to run through.

Use the 500 Series for sleeved posts with an outside diameter greater than 4½”.

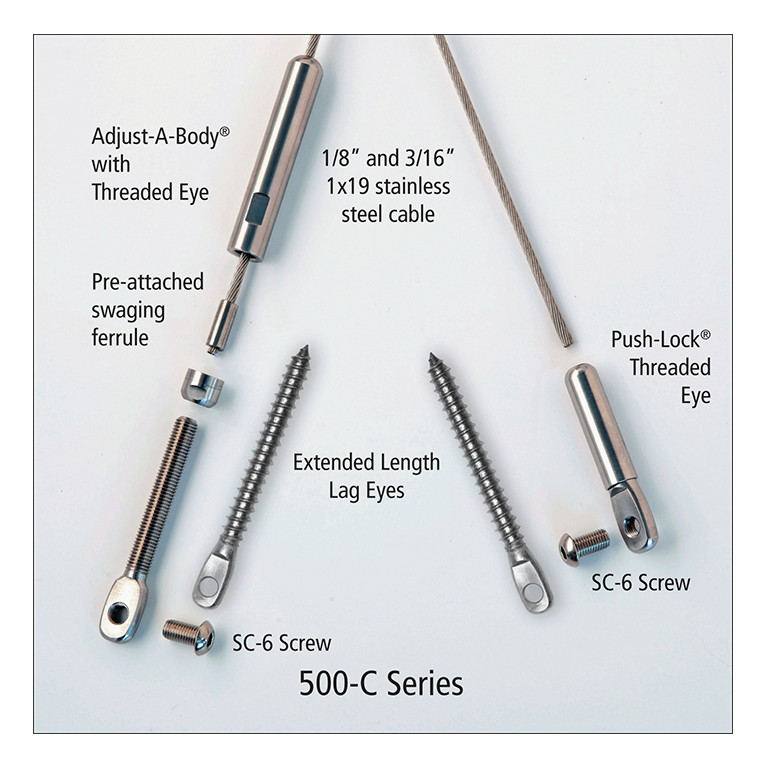

The tensioning device is an Adjust-a-Body® with Threaded Eye, which attaches via a mounting screw to the lag eye, threaded tab, or extended length lag eye, depending on the kit.
A Push-Lock® with Threaded Eye attaches the same way to the other end.

As it is not recommended to bend cable through a sleeved post, stair to landing for sleeved posts would be two separate runs.
