ALUMINUM CABLE RAILING SYSTEM

RailFX Aluminum Railing Systems deliver an all-in-one solution for any project. Our team of experts make sure you are taken care of at every step.

  • Up to 5′ Post Spacing
  • 1/8″ 316 Stainless Steel Cable*
  • Cable Fasteners included with the system
  • Seamless top rails are available in lengths up to 20 feet
  • Easy to trim top rails on site
  • All posts are pre-drilled for cable and conceal the fittings and hardware
  • Custom colors available
  • Low Maintenance

AT RAILFX, WE’RE ALWAYS BUILDING BETTER WAYS TO SUPPORT YOU.

LEAN ON US.



*1/8″ stainless steel cable is recommended for residential applications. Additional cable diameters available, contact your RailFX representative for more information.

TOP RAIL OPTIONS

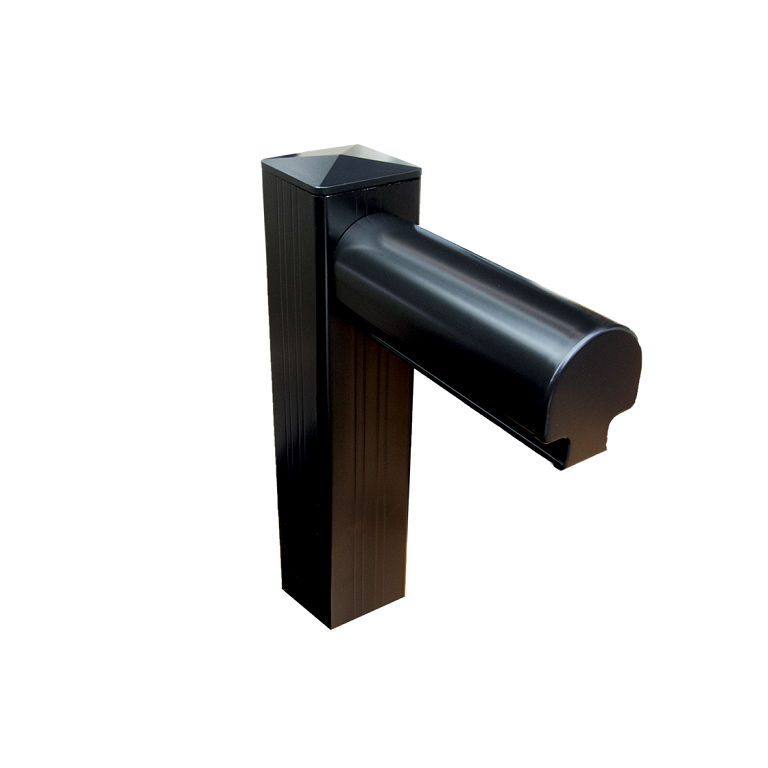

RFX 100

Round Top Rail

RFX100

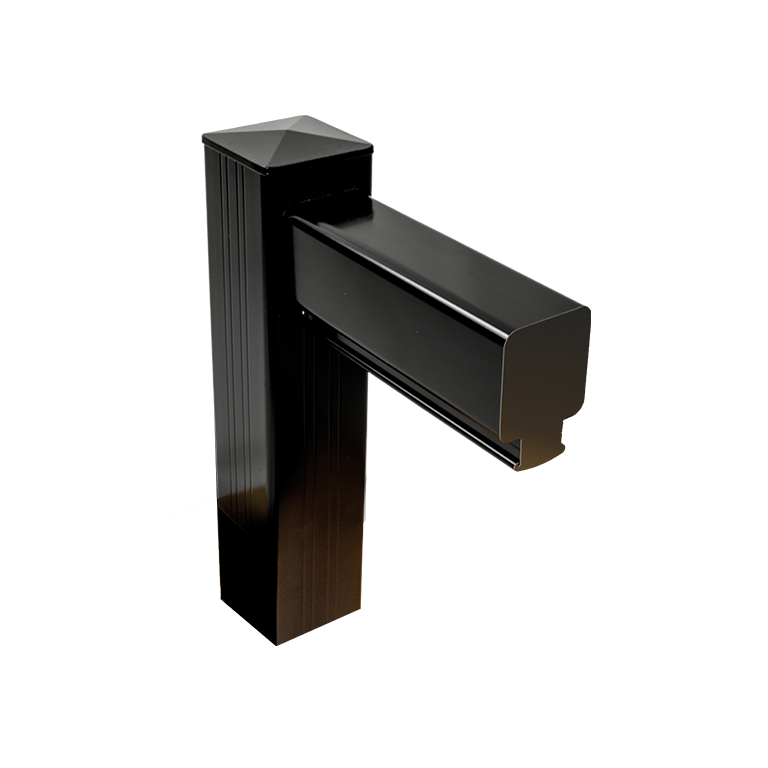

RFX 250

Square Top Rail

RFX250

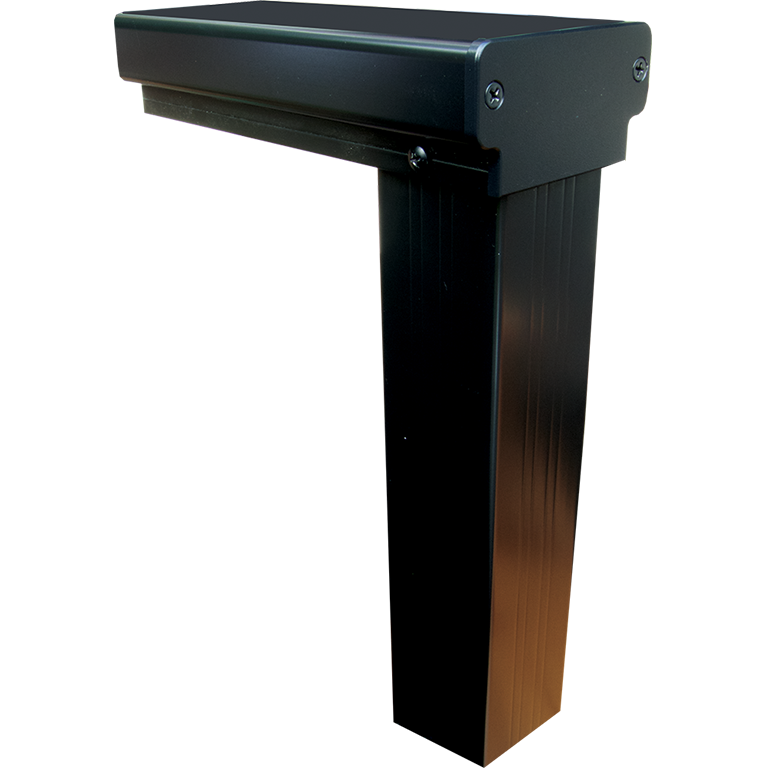

RFX 200

Flat Top Rail

RFX200

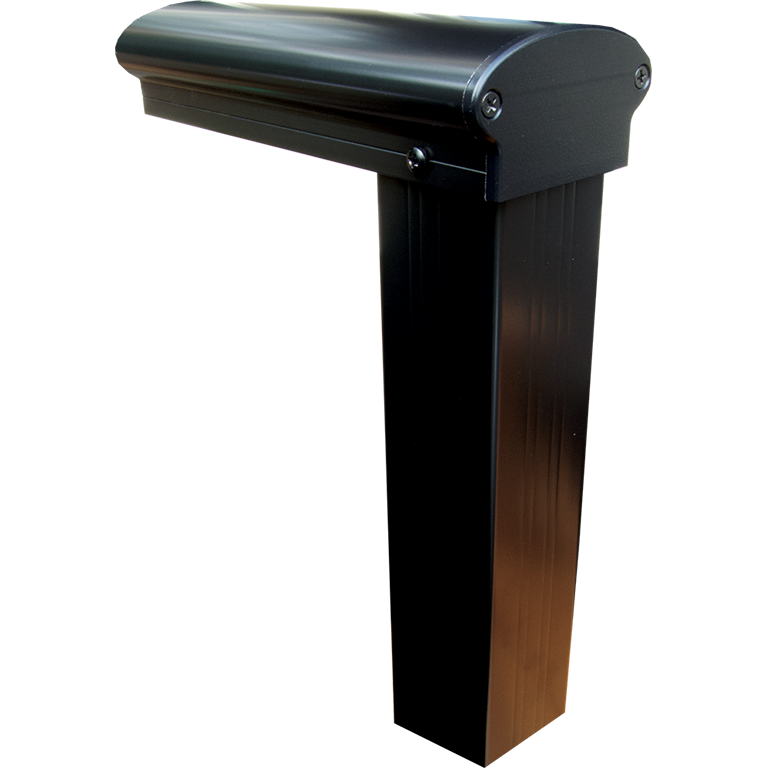

RFX 300

Elliptical Top Rail

RFX300

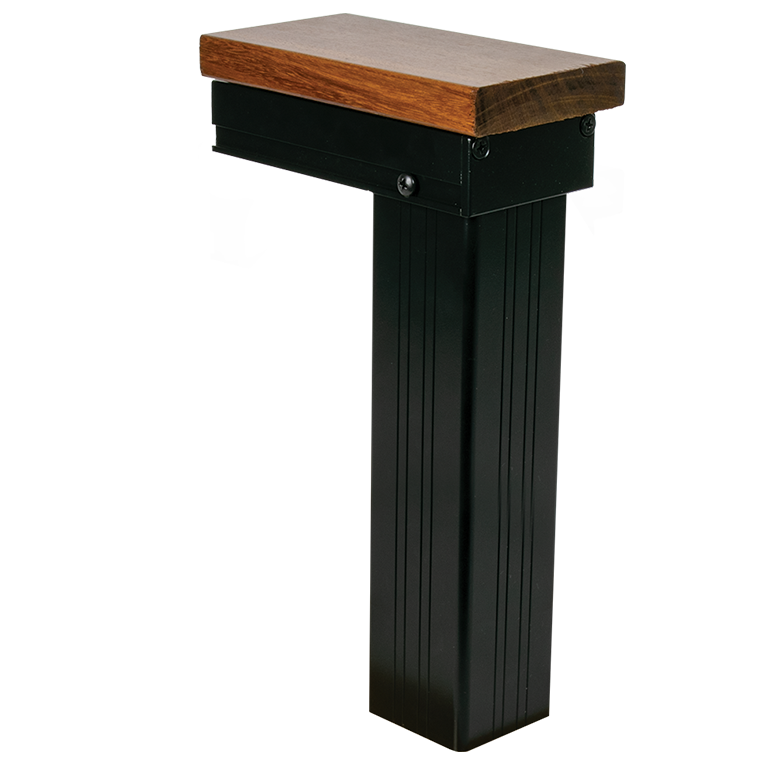

RFX 400

Rail for Wood Top*

RFX400
*Wood Top shown to illustrate finished look. It is not included.

Post mounting styles

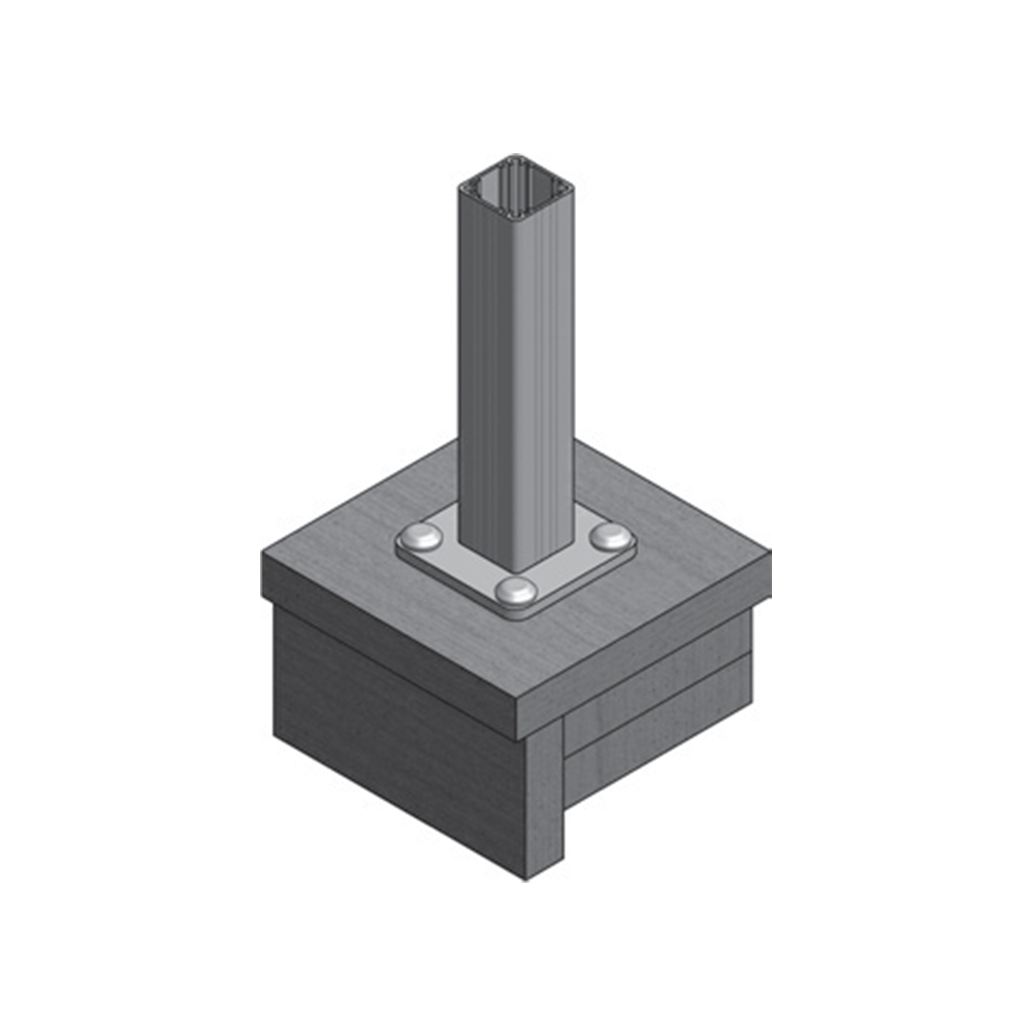

Surface Mount



Surface Mount

Choose for direct surface mounting to the deck, patio, floor or stair tread.

Pre-attached 3/8″ thick base plate attached to post with (4) 2″ case hardened stainless steel screws.

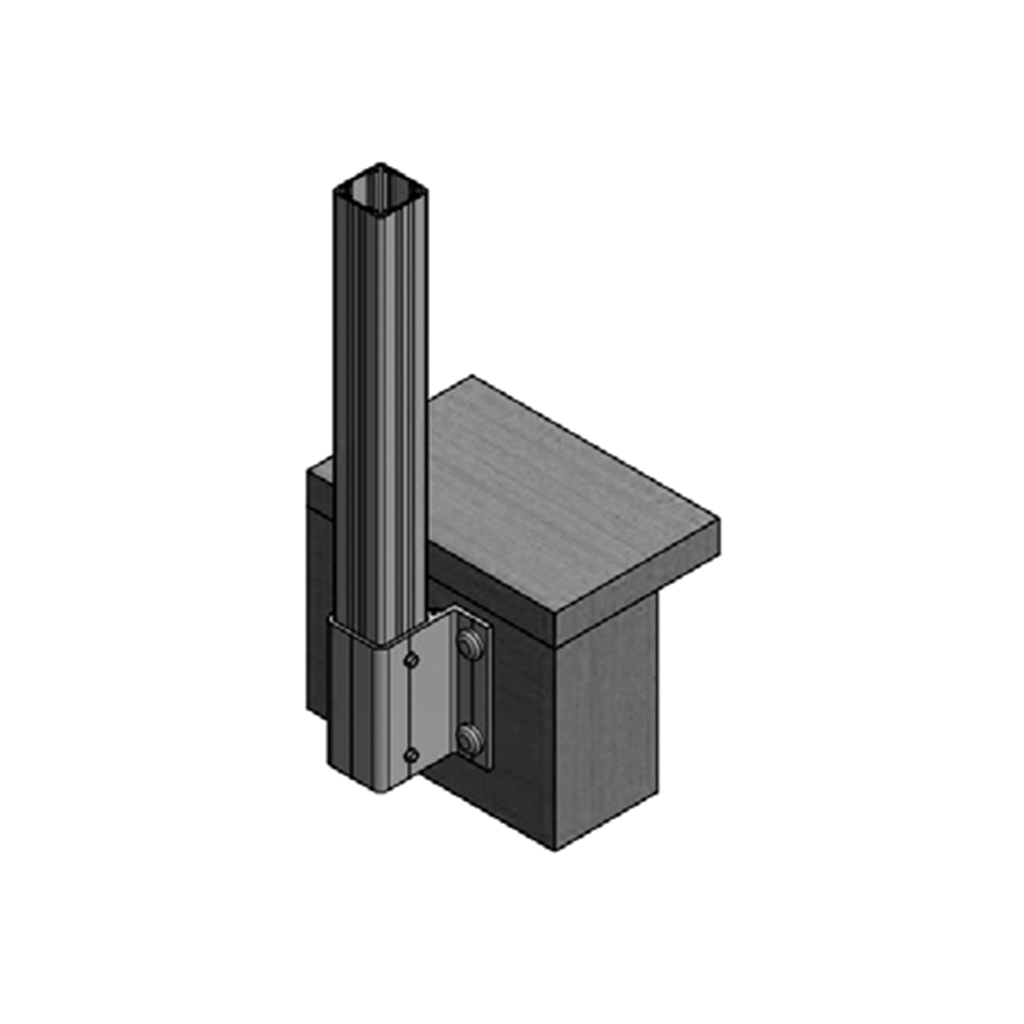

Fascia Mount Post

(with bracket)

Fascia railing mount

Choose side mounting directly to fascia or rim joist when decking or flashing extend beyond fascia board.

Post bracket holds posts 1-1/4″ from fascia.

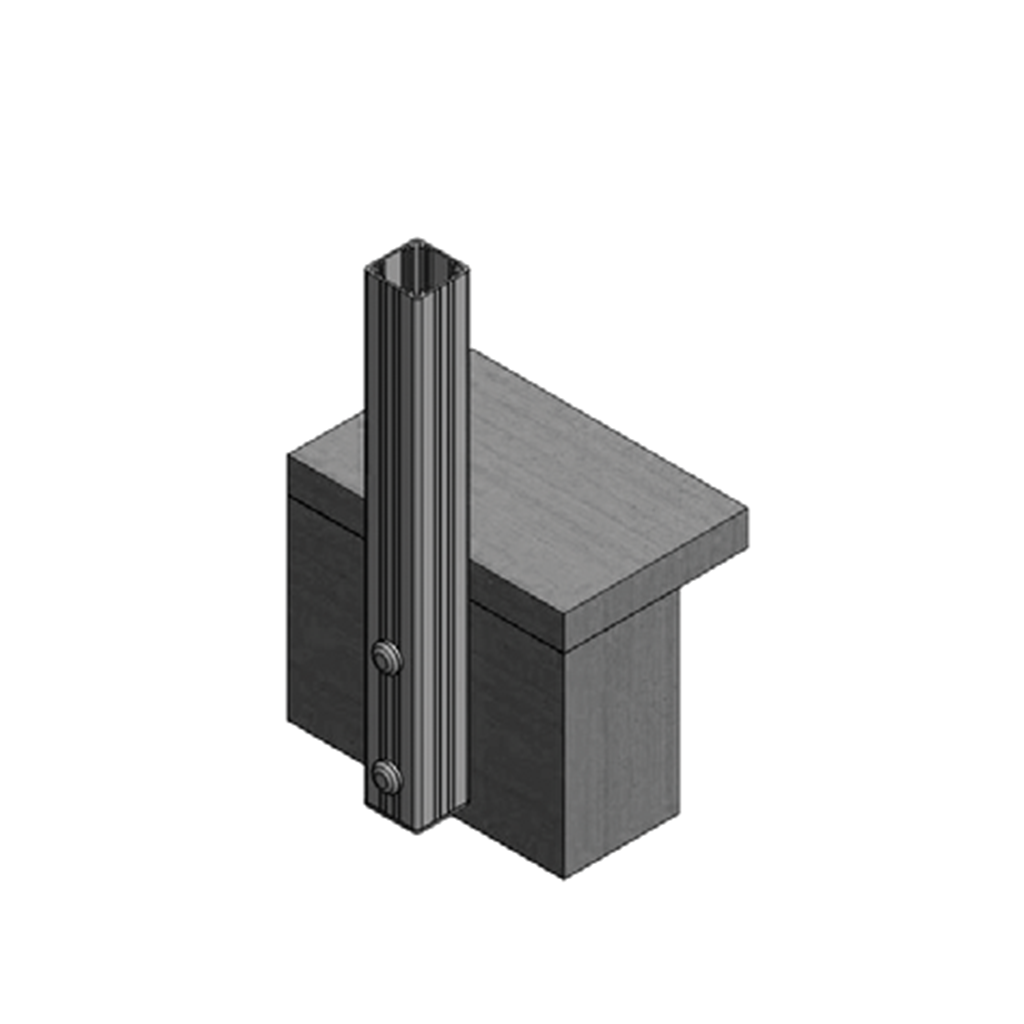

Flush Mount

(no bracket)

flush railing mount

Post is mounted directly to fascia when no deck board or flashing overhangs fascia board.

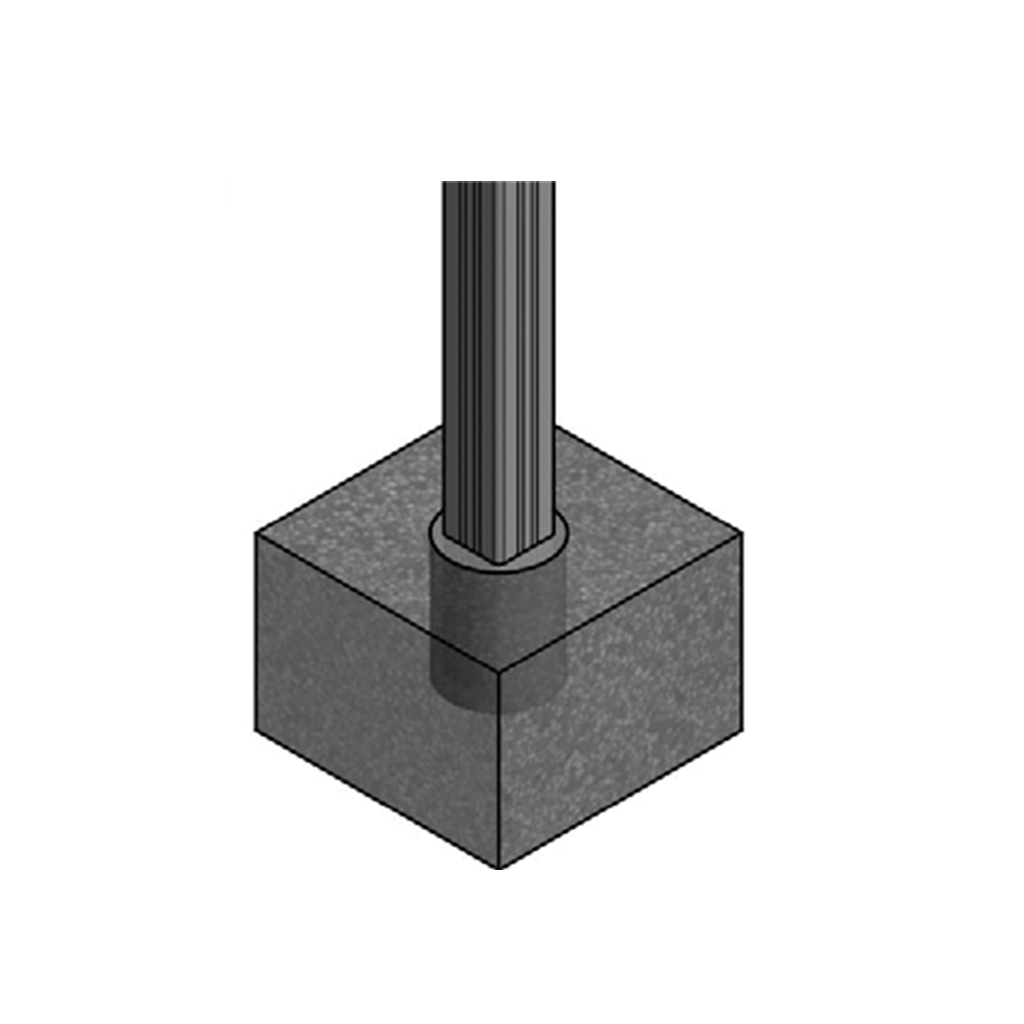

Core Mount Post



Core mount for cable railing

Post is set in hole in concrete and grouted in place with non-shrinking grout.

Finish Color Options

Black

(Stock)

RFX black option

White

(stock)

White

Bronze

(stock)

Bronze

Silver

(stock)

silver

Custom*



RFX custom

Colors may vary. Images shown represent approximate color only. Additional cost and lead time apply.
