Professional CABLE KIT FOR LEVEL OR PITCHED RUNS

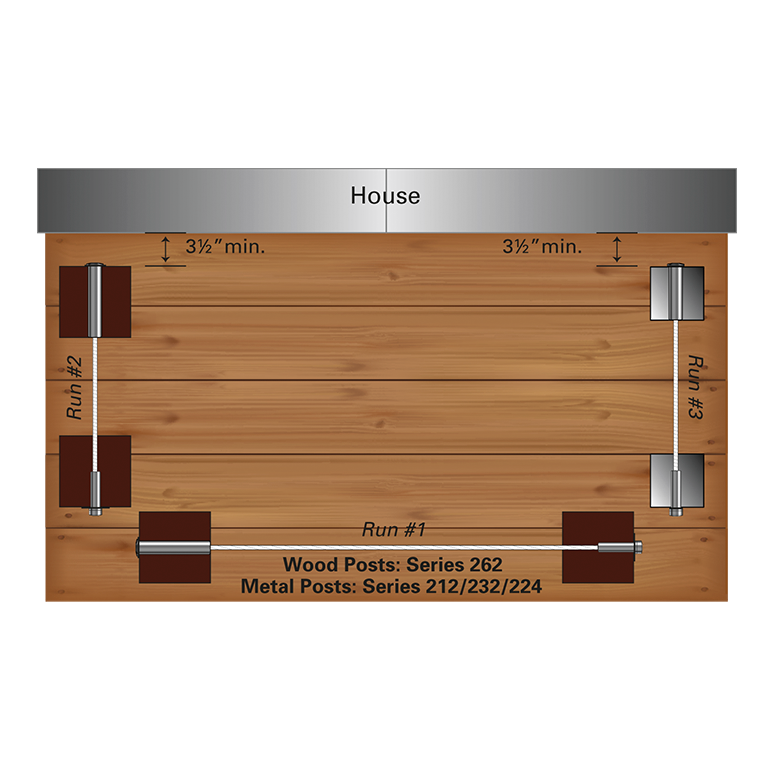

Straight cable runs and cable runs through one corner are ideal applications for the Professional 224 Series Kit. There needs to be dedicated end posts for each run, and posts  situated such that the back side of the posts are all accessible, meaning you can use a through-the-post configuration.

For wood or metal posts a minimum of 1-1/2″ outside diameter is required to keep the post from bending when the cables are tensioned. Included is a 2-3/8″ tensioning Invisiware® Receiver fitting. The receiver installs through the post on one end. A Pull-Lock® fitting is installed through the other end.

When taking cable railing through a corner, do not bend the cable past 45 at any one time. If turning 90, a 2-step turn using a double corner post configuration is required.



Required Installation Tools

  • 5/32″ Drill Bit
  • 3″ Combo Wrench
  • 1/4″ Drill Bit
  • RFXPL-KEY
  • 29/64″ Drill Bit
  • Cable Gripper
  • 1/8″ Hex Wrench
  • Cut Off Kit (mandrel)
  • 3/16″ Allen Wrench
  • Cut Off Kit (wheel)

Order our Installation Kit along with your Cable Kit to ensure you have the required tools needed. Use the Part Number INSTL-KIT-100_200
