Level with Brackets
Stair with Brackets
Optional Horizontal Pivot 0o – 45o
Includes top and bottom pivot brackets in a set
PFX1000 – Aluminum Railing System with Picket Infill
A complete aluminum picket railing system, our PFX1000 meets your “carefree” goal with a virtually maintenance-free product with a limited lifetime warranty. This robust system is constructed from extruded aluminum that will never rust and exceeds IBC and IRC requirements to provide the structure you need. Available in AAMA-2604 powder coat textured black and bronze finishes and includes tension fit balusters to prevent rattling.
Preassembled Panels
Preassembled panels are available in 6’ and 8’ level and stairs. Optional KD kits available in 10’ lengths also.
Adjustable Brackets
Level brackets can pivot horizontally up to 45°. Stair brackets are adjustable 0° – 40°.
Adjustable Gates
Do you require a custom gate width? Gates accommodate widths up to 47” and are assembled on site.
Tension Fit Baluster
Internal fins provide tension against the baluster and prevents any noise disturbance.
BUILD YOUR OWN PFX1000 IN THESE 7 SIMPLE STEPS
PICK YOUR PANELS AND BRACKETS
PICK YOUR PANELS AND BRACKETS
Level with Brackets
Stairs with Brackets
Optional Horizontal Pivot 0o – 45o
Includes top and bottom pivot brackets in a set
PANEL HEIGHT
PANEL WIDTH
36"
42"
6'
8'
POST HEIGHT
COLOR OPTIONS
POST HEIGHTS
3″ POST WIDTH
Post kit individually boxed and includes post, post cap and post skirt
BLACK
(STOCK)
BRONZE
(STOCK)
Please note: Finish is textured and colors may vary. Images shown represent approximate color only.
GATE KIT
OPTIONAL
- The gate kit includes all materials to accommodate gates up to 47" wide and 42" rail height (components trimmed in field)
• (2) self closing hinges
• Locking gate latch
• Fasteners
POST DRILLING TEMPLATE
- Makes an easy installation even easier
- This optional tool overlaps and self centers on 3" posts
- Provides pre-drill positioning for all bracket configurations
- Centers bottom rail bracket on post when installing screws
TOUCH-UP PAINT
- Black
- Bronze
- Why choose the PFX1000 – Aluminum Railing System with Picket Infill?
- Preassembled panels in both level and stair versions
- Adjustable brackets & stair angle accommodations
- Adjustable gates to accommodate up to 47” on-site
In addition to top-notch aesthetics, PFX1000 is easy to assemble, corrosion resistant and maintenance-free, making it ideal for both residential and light-commercial projects.
PANEL HEIGHT
36"
42"
PANEL WIDTH
6"
8"
POST HEIGHT
POST HEIGHTS
3″ POST WIDTH
Post kit individually boxed and includes post, post cap and post skirt
COLOR OPTIONS
BLACK
(STOCK)
BRONZE
(STOCK)
Please note: Finish is textured and colors may vary. Images shown represent approximate color only.

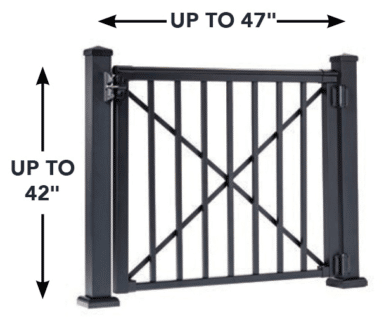

GATE KIT
The gate kit includes all materials to accommodate gates up to 47″ wide and 42″ rail height (components trimmed in field)
• (2) self closing hinges
• Locking gate latch
• Fasteners
OPTIONAL
POST DRILLING TEMPLATE
- Makes an easy installation even easier
- This optional tool overlaps and self centers on 3" posts
- Provides pre-drill positioning for all bracket configurations
- Centers bottom rail bracket on post when installing screws
TOUCH-UP PAINT
- Black
- Bronze
- Why choose the PFX1000 – Aluminum Railing System with Picket Infill?
- Preassembled panels in both level and stair versions
- Adjustable brackets & stair angle accommodations
- Adjustable gates to accommodate up to 47” on-site
In addition to top-notch aesthetics, PFX1000 is easy to assemble, corrosion resistant and maintenance-free, making it ideal for both residential and light-commercial projects.
