Basic Cable Kit for Level or Pitched Runs

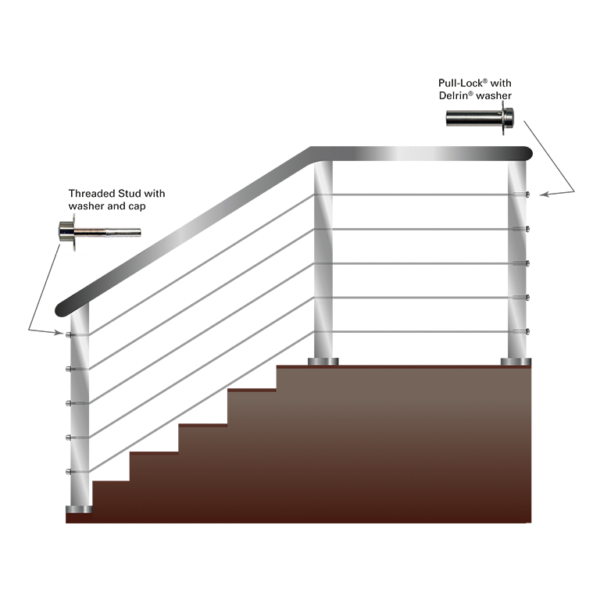

A through-the-post configuration is the ideal scenario to use the Basic threaded stud kits. The threaded studs are a functional fitting, not a hide-in-the-post solution. A brass hex nut and some metal thread (both covered by an end cap) will extend beyond the back of the post on one end. A Pull-Lock® fitting is installed through the other end.

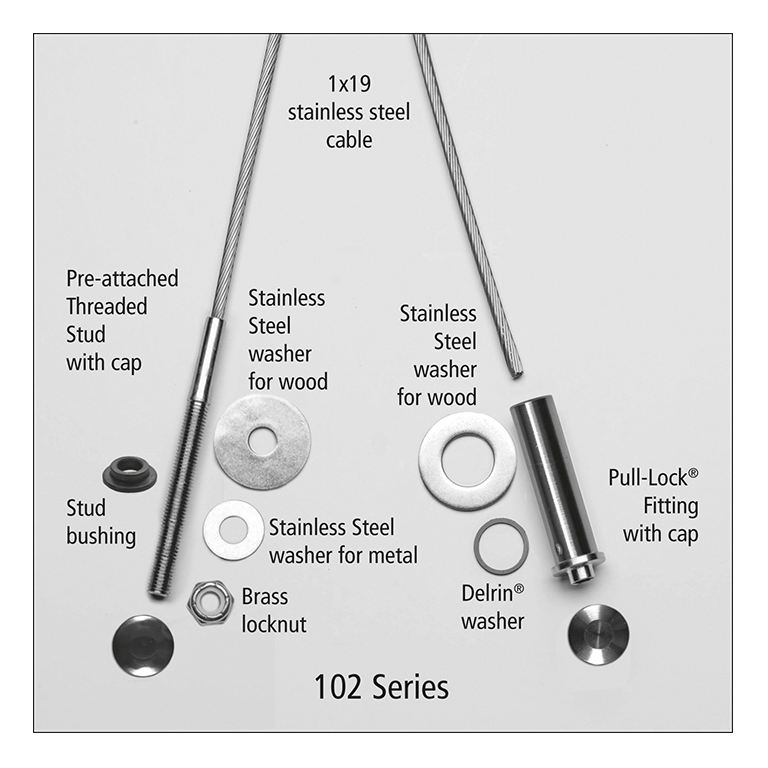

For either wood or metal posts, use the 102 Basic Series. The tensioning device is a 2-7/8” long threaded stud which installs on the back side of one end post.
When taking cable railing through a corner, do not bend the cable past 45⁰ at any one time. If turning 90⁰, a 2-step turn using a double corner post configuration is required.
The Basic 102 Series kit is offered with cable lengths from 5′-70′. Each kit contains the cable and hardware needed to complete one run.
Tools Required for Installation
• 5/32″ Drill Bit
• 1/4″ Drill Bit
• 29/64″ Drill Bit
• 1/8″ Hex Wrench
• 7/16″ Wrench
• RFXPL-KEY
• Cut Off Kit (mandrel)
• Cut Off Kit (wheel)
Order our Installation Kit along with your Cable Kit to ensure you have the required tools needed. Use the Part Number INSTL-KIT-100_200
Specifications
Basic Series 102 Kit
| Cable Length | 1/8″ Cable | 3/16″ Cable |
|---|---|---|
| Part No. | Part No. | |
| 5′ | RFX10205 | RFX10205-6 |
| 10′ | RFX10210 | RFX10210-6 |
| 15′ | RFX10215 | RFX10215-6 |
| 20′ | RFX10220 | RFX10220-6 |
| 25′ | RFX10225 | RFX10225-6 |
| 30′ | RFX10230 | RFX10230-6 |
| 40′ | RFX10240 | RFX10240-6 |
| 50′ | RFX10250 | RFX10250-6 |
| 60′ | RFX10260 | |
| 70′ | RFX10270 |
